| Amperage Rating | : | 20 sec Igniter Warm-Up Time |
| Depth | : | 1-1/2 in |
| Domestic/Import | : | Import |
| Electrical Connection | : | 1/4 in Quick-Connect |
| Gas Type | : | Natural Gas/Liquid Propane |
| Height | : | 4 in |
| Igniter Warm-Up Time | : | 20 sec |
| Includes | : | Diagnostic Indicator Flash Codes |
| Material | : | Silicone Nitride |
| Mounting Type | : | Surface |
| Type | : | Universal |
| Voltage Rating | : | 25 VAC |
| Width | : | 30 in |

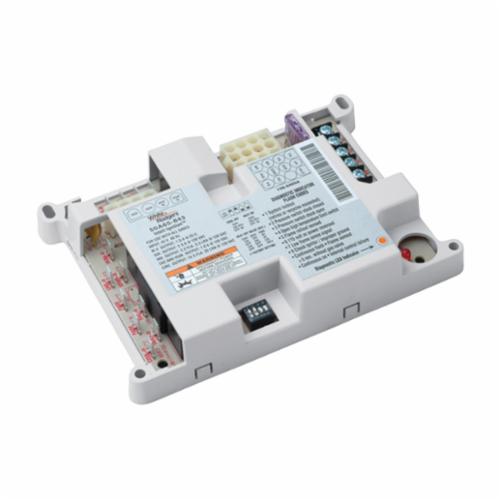

White-Rodgers™ HSI Control, Universal, 25 VAC, 0.45 A, 1/4 in Quick Connect, Natural Gas/Liquid Propane, 20 sec Igniter Warm-Up Time, Surface Mount, 30 in Width, 1-1/2 in Depth, 4 in Height, Silicon Nitride, Import
- Replaceable 3 A fuse
- 60 min auto reset
- Single channel flame sense
- -40 to 176 deg F
- 5 to 93 percent relative humidity
- 1.5 A valve relay
- 6 A ignitor relay
- 2.2 FLA to 3.5 LRA inducer relay
- 14.5 FLA to 25 LRA circulator relay
- 1 A at 120 VAC electric air cleaner and humidifier
- Variable timing for 80 V ignitors
