| Amperage Rating | : | 0.45 A |
| Domestic/Import | : | Import |
| Gas Type | : | Natural/Manufactured/Mixed/LP Gas |
| Igniter Warm-Up Time | : | 20 sec |
| Includes | : | Diagnostic Indicator Flash Codes, Controls Gas Valve, Igniter, Blower, Inducer, Humidifier and Air Cleaner |
| Material | : | Silicone Nitride |
| Mounting Type | : | Surface |
| Voltage Rating | : | 25 VAC |

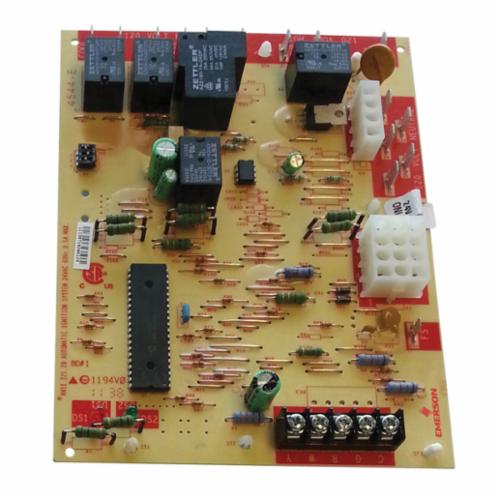

The 50A66-743 is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan. signals interpreted during continual surveillance of the thermostat and flame sensing element initiate automatic ignition of the burner, sensing of the flame, and system shutoff during normal operation. these controls incorporate system fault analysis for quick gas flow shutoff , coupled with automatic ignition retry upon sensing a fault correction.
White-Rodgers™ Replacement Integrated Furnace Control, 25 VAC, 0.45 A, Natural/Manufactured/Mixed/LP Gas, 20 sec Igniter Warm-Up Time, Surface Mount, Silicon Nitride, Import
- 3 fan speeds
- Remote flame sense
- Humidifier and electronic air cleaner connections (optional)
- -40 to 176 deg F
- 5 to 93 percent relative humidity
- 1.5 A valve relay
- 6 A ignitor relay
- 2.2 FLA to 3.5 LRA inducer relay
- 14.5 FLA to 25 LRA circulator relay
