| Amperage Rating | : | 0.45 A |
| Depth | : | 1-1/4 in |
| Domestic/Import | : | Import |
| Electrical Connection | : | 1/4 in Spade Terminal and Molex Plug |
| Gas Type | : | Natural Gas/Liquid Propane |
| Height | : | 7 in |
| Igniter Warm-Up Time | : | 17 sec |
| Includes | : | Hotrod™ Universal Nitride 120V Igniter, Module and Wiring Harness |
| Lead Length | : | 15-1/2 in |
| Mounting Type | : | Surface |
| Probe Length | : | 15-1/2 in |
| Type | : | Universal |
| Voltage Rating | : | 25 VAC |
| Width | : | 5-1/4 in |

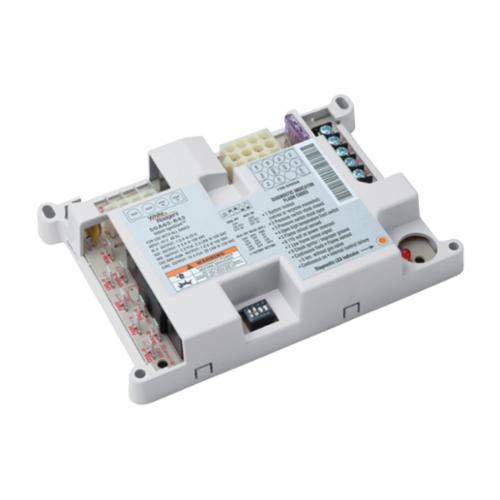

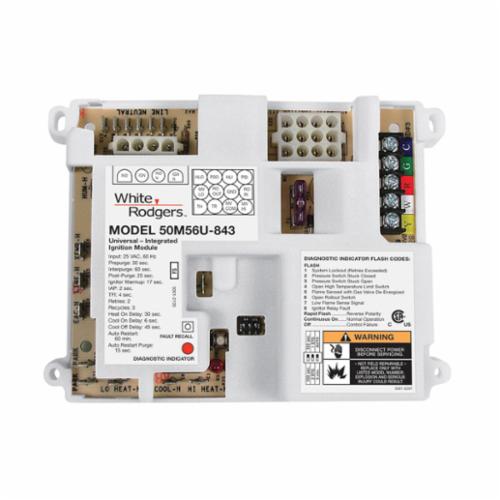

The 50M56U-843 kit is a universal single stage HSI integrated furnace control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan.
White-Rodgers™ Integrated HIS Furnace Control Kit, Universal, 15-1/2 in Lead Length, 15-1/2 in Probe Length, 25 VAC, 0.45 A, 1/4 in Spade Terminal and Molex Plug, Natural Gas/Liquid Propane, 17 sec Igniter Warm-Up Time, Surface Mount, 5-1/4 in Width, 1-1/4 in Depth, 7 in Height, Import
- 3 fan speeds - cool, low heat and high heat speeds

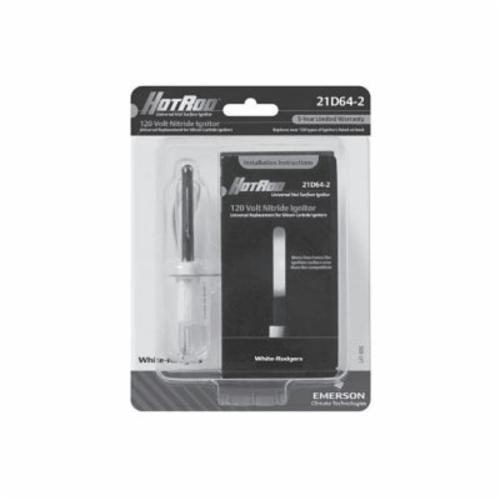

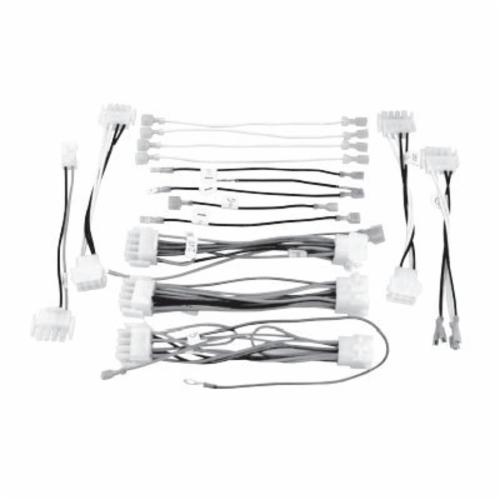

- Universal Hotrod nitride ignitor kit - 21D64-29 quick-select/quick connect wiring harnesses
- Red LED diagnostic flash codes with stored fault recall
- Low voltage fuse protection, 3 A replaceable automotive type
- -40 to 176 deg F operating
- 0.8 sec flame establishing
- 2 sec flame failure response
- 120 V ignitor voltage
