| Cord Length | : | 15 ft |
| Detection Range | : | 10 ft |
| Enclosure Type | : | NEMA 3R |
| Indication Type | : | Visual/Audible |
| Sound Level | : | 82 db |
| Switch Type | : | Tethered Float |
| Type | : | Single Phase High level |
| Voltage Rating | : | 115 V |
The all new APak® alarm is more compact and easier to install. It is CSA approved in a NEMA 1 enclosure. Battery life is over 1 year from 2 AA batteries. Alarm may be used as AC only, DC only, or AC/DC applications. The APak® alarm system sounds a horn when a potentially threatening liquid level condition occurs. The horn can be silenced, but the alarm light remains on until the condition is remedied. A green "POWER ON" light indicates 120 V primary power to the alarm. A low battery chirp feature indicates when the battery should be replaced. A red "ALARM" light indicates a high-level condition.

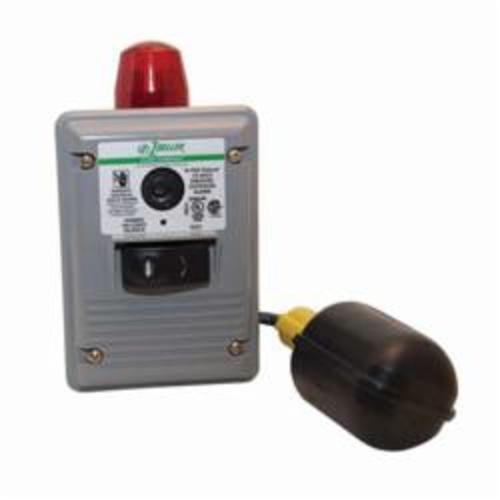

Zoeller® A-Pak® Alarm System, Single Phase High level, 82 db, 10 ft, 115 V, 15 ft Cord, Tethered Float Switch, Visual/Audible Indication, NEMA 3R
- NEMA 3R enclosure 6.5 x 4.5 x 3 in
- Horn and light operate to warn of a high water condition
- Automatic alarm reset, horn silence switch and alarm test switch
- Float switch with 15 ft (5 m) cable included
- Interior pump and float switch terminal block
- Top-mounted alarm beacon
- 15 ft (5 m) alarm (12 V) tethered switch
- Pre-mounted terminal block with connections for pump and float switch
- Power connections are field-wired
- Stand alone high water alarms and starter kits for single phase capacitor start/capacitor run pumps
